Aliplast Ultraglide Angular 90˚
Product Code: Aliplast Ultraglide Angular 90˚
Availability: In Stock
Price:
$ 15,000
- Free consultation
- Delivery and certified installation in CT & NY
- European quality
43 (-2,-6) dBacoustic
Class 4; EN 12207Air Permeability
153-239 mmDepth of Frame
67 mmDepth of Leaf

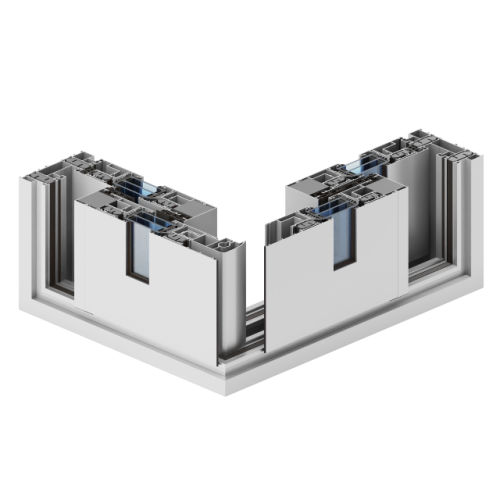

Aliplast Ultraglide Angular 90° is an innovative corner sliding door system created for spectacular panoramic glazing and open-concept architecture. The unique movable corner design allows two glass walls to meet at a 90-degree angle without a fixed structural post, opening the entire corner for an uninterrupted connection to outdoor spaces. With superior thermal insulation, large sash capacities, and sleek aluminum profiles, it delivers exceptional functionality and visual impact.
| acoustic | 43 (-2,-6) dB |
| Air Permeability | Class 4; EN 12207 |
| Depth of Frame | 153-239 mm |
| Depth of Leaf | 67 mm |
| Glazing Range | 14-52 mm |
| Material | aluminium / thermal insulation |
| system | UG angular solution 90˚ |
| Thermal Insulation (Uf) | from 1.45 W/m²K |
| type of doors | sliding, lift-sliding |
| Watertightness | 9A (600 Pa); EN 12208 |
| weight of leaf | to 250 kg sliding / to 400 kg lift-sliding |
| Windload Resistance | Class C4 (1600 Pa); EN 12210 |
