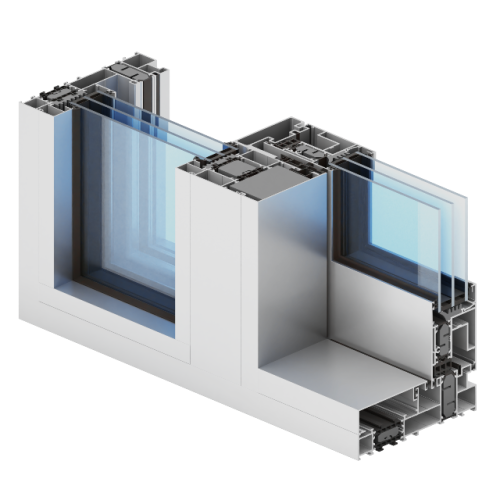

Aliplast Ultraglide Monorail
Product Code: Aliplast Ultraglide Monorail
Availability: In Stock
Price:
$ 7,125
Aliplast Ultraglide Monorail is a sophisticated sliding door solution featuring a concealed frame design that maximizes glass area and minimizes visible profiles. The fixed glazing extends elegantly to floor level, creating a clean, contemporary appearance while maintaining outstanding thermal performance. Designed for large glazed openings, the system provides smooth operation, excellent weather resistance, enhanced energy efficiency, and stunning panoramic views for modern residential architecture.
| acoustic | 43 (-2,-6) dB |
| Air Permeability | Class 4; EN 12207 |
| Depth of Frame | 176 mm |
| Depth of Leaf | 67 mm |
| Glazing Range | leaf 14-52 mm, fix 12-72 mm |
| Material | aluminium / thermal insulation |
| system | Ultraglide Monorail |
| Thermal Insulation (Uf) | from 0.93 W/m²K |
| type of doors | sliding, lift-sliding |
| Watertightness | Class E750 (750 Pa); EN 12208 |
| weight of leaf | to 250 kg sliding / to 400 kg lift-sliding |
| Windload Resistance | Class C5 (2000 Pa); EN 12210 |
