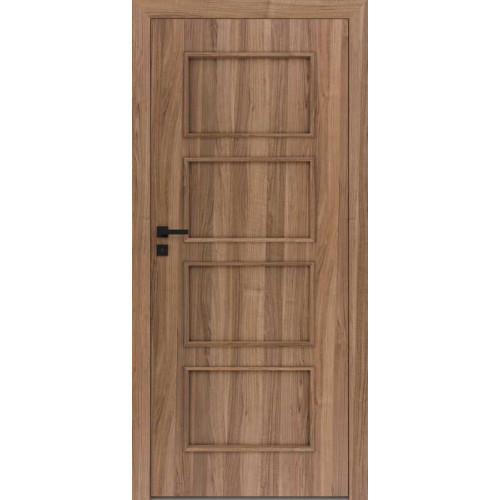

DRE Modern 10 Panel Door
Modern 10 is a panel-style interior door built on a softwood frame with a standard honeycomb core. Its practical distinction is the set of height and movement standards available within the range, allowing the same model family to be considered for openings with different proportions. The visible surface can be selected from DRE’s listed finish groups, but a decorative wood appearance does not change the underlying frame-and-core construction into a solid timber leaf. The standard honeycomb and optional tubular chipboard are separate core choices. Identify which filling is wanted when describing the order, along with the finish and height standard, so the chosen specification does not rely on an assumption that every height or surface includes the same interior.
Core, Height, and Finish Choices
The catalog lists tubular chipboard as an alternative to the standard honeycomb for the stated height standards, including 1,983 mm, 2,043 mm, 2,110 mm, and 2,240 mm. Confirm that the selected filling applies to the chosen height rather than treating it as an automatic upgrade in every configuration. Modern 10 is offered with DRE-Cell, 3D, and other catalog surface groups; select a named finish and the corresponding frame finish as part of the order. These surface choices describe the finish layer, while the softwood frame and core describe the panel’s construction. Keeping those categories distinct makes it easier to compare two Modern 10 quotations that may use the same decor but different internal filling or height.
Hinged, Sliding, and Pair Assemblies
DRE lists rebated and non-rebated hinged versions, sliding leaves, and separate two-leaf arrangements. The sliding version is not offered at the 1,983 mm height standard. Rebated doors use screw-in hinges; non-rebated hinged leaves are prepared for recessed Estetic 80 hinges in the frame. Lock functions follow the selected hinged configuration, with regular-key, bathroom, cylinder, and latch-only choices listed. A paired opening needs both leaves and the appropriate meeting detail, while sliding requires its own mechanism and fittings. Optional ventilation preparations should be specified with the leaf rather than assumed from the model name. Select movement first, then confirm the compatible height, hinge or sliding preparation, lock, and core. Specify the frame and handle alongside the selected leaf to document the complete doorway. Use height and core as explicit fields in the order note. The filling should be stated as the selected catalog option rather than inferred from the leaf height or surface appearance. For sliding, the 1,983 mm exclusion is a direct limit. If that height standard is required, choose another documented movement arrangement instead of assuming that the sliding leaf can be adjusted to fit.
Modern 10 Specifications
| Specification | DRE Modern 10 detail |
|---|---|
| Construction | Softwood frame and standard honeycomb core |
| Optional core | Tubular chipboard for listed height standards |
| Height standards | 1,983, 2,043, 2,110, and 2,240 mm |
| Movement | Rebated or non-rebated hinged, sliding, or paired |
| Sliding limit | Not offered at 1,983 mm |
| Hinge preparation | Screw-in for rebated; Estetic 80 for non-rebated |
| Starting scope | One leaf; frame and handle separate |
