DRE Solid RC2
- Free consultation
- Delivery and certified installation in CT & NY
- European quality

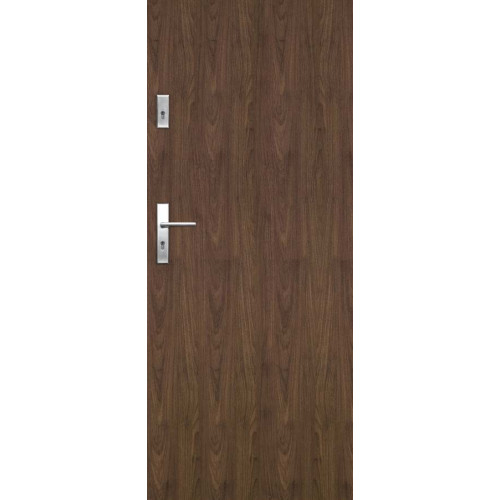

DRE Solid RC2 Interior Entrance Door
Solid RC2 is DRE’s interior entrance model for a project that requires the manufacturer’s specified security-door assembly. The leaf combines a glued softwood frame and solid chipboard filling with an outer HDF panel incorporating aluminum sheet. Its listed hardware includes a multipoint strip lock, anti-pry bolts, and three three-part hinges. This is a composite door leaf, not a solid aluminum panel. The CPL laminate finish identifies the surface; the frame, threshold, and dedicated fittings complete the configuration to which the published classifications apply. Treat the model name as the starting point for a matched set rather than as evidence that every frame or substitute fitting has the same result.
Specify the Complete Entrance Assembly
DRE conditions both RC2 resistance and the published Rw 32 dB result on the specified steel frame, steel threshold, and dedicated handle, escutcheon, and lock cylinders. The individual leaf does not carry those assembly results by itself. Fixed, adjustable, and hybrid steel-frame choices are listed, so identify the exact frame and threshold with the leaf and fittings when the opening is quoted. The standard width codes run from 80 through 100, and 90E is the listed arrangement for a 900 mm clear passage when the leaf is open to 90 degrees. These are different measurements: choose the code and complete opening layout that suit the project rather than assuming the clear passage from the nominal label.
An optional viewer is available as a separate addition. Finish, threshold position, and the selected frame should be resolved together, especially where the entrance connects to a finished floor or a shared interior corridor. For a security-focused order, keep the manufacturer’s complete hardware set intact; a decorative handle substitution would not match the documented configuration. The quoted leaf and the completed doorway therefore have different component scopes. Record the required frame, steel threshold, handle set, cylinders, and any viewer separately, then compare complete assemblies on the same basis. If selected, show the viewer position on the door drawing and retain the complete specified frame, threshold, and fitting set for the security and acoustic assembly.
DRE Solid RC2 Interior Entrance Door Specifications
| Specification | Published detail |
|---|---|
| Product | Solid RC2 interior entrance door |
| Leaf frame and core | Glued softwood frame with solid chipboard filling |
| Outer panel | HDF incorporating aluminum sheet |
| Leaf hardware | Multipoint strip lock, anti-pry bolts, three three-part hinges |
| Published assembly results | RC2 and Rw 32 dB only with specified steel frame, steel threshold, and dedicated fittings |
| Nominal width codes | 80–100 |
| 90E opening | 900 mm clear passage with leaf open at 90 degrees |
| Surface and option | CPL laminate groups; optional viewer |
| Required separate components | Steel frame, steel threshold, dedicated handle, escutcheon, and cylinders |
