VEKA VEKAMOVE 76 Sliding Window and Door System

VEKA VEKAMOVE 76 Sliding Window and Door System

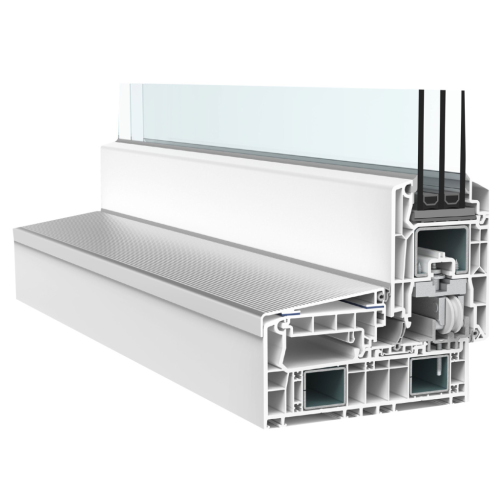

The VEKA VEKAMOVE 76 Sliding Window and Door System is a PVC-U profile system for sliding windows and doors, designed to save swing space while keeping broad glazed areas open to daylight. With a sliding panel, furniture and circulation can sit closer to the opening than with a conventional hinged door that swings into the room. VEKA describes several opening schemes, including layouts with a moving sash beside fixed glazing and multi-panel arrangements, so the design can balance clear passage with the width of the fixed view. The system’s 150 mm frame depth and 76 mm sash depth define its profile format, and the construction accepts glazing up to 48 mm thick. Multiple insulating chambers in the profiles work with the gasket arrangement and selected glazing as part of the finished assembly. VEKA’s brochure describes peripheral sealing levels with an additional center seal; when the sash closes into the frame, the seals provide a continuous contact path around the panel. VEKA describes a handle-operated mechanism that moves the sash slightly away from the frame while keeping it within its guides, then draws it against the gaskets when locked. This controlled movement combines a sliding route with close contact at the frame, while the center seal adds another sealing level within the profile arrangement. The system’s finish palette includes colored and decorative profile surfaces, allowing the frame to coordinate with a range of facade and interior styles. VEKAMOVE 76 reference data describes the system, while the completed window or door depends on its selected configuration.

Sliding PVC Profiles, Seals, and Glazing Choices

VEKAMOVE 76 is suited to openings where keeping the panel within the frame’s travel path is useful for room layout and access to a terrace or garden. The sliding arrangement avoids the sweep of a hinged leaf, and the available A, C, and K schemes give a fabricator different combinations of sliding and fixed sections. The glass build can be selected within the system’s capacity of up to 48 mm. The manufacturer also publishes a per-sash glass-load limit, listed below. Its product literature gives air Class 4 under EN 1026, water Class 9A under EN 1027 depending on scheme, and wind Class B3 under EN 12211 depending on dimensions. The brochure’s separate door and window thermal examples are recorded with their sample conditions below. Together, the sliding schemes, glass capacity, seal design, and surface options let the system be adapted to the opening and the surrounding finish palette.

VEKA VEKAMOVE 76 System Specifications
