Aliplast Genesis 75 Window with Integrated Inter-Pane Blind

Aliplast Genesis 75 Window with Integrated Inter-Pane Blind

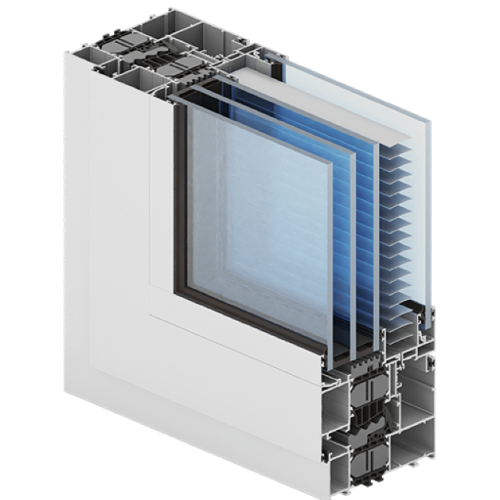

The Aliplast Genesis 75 Window with Integrated Inter-Pane Blind combines an aluminum window profile system with a blind positioned between the main glass and an additional outer pane. Aliplast identifies this dedicated construction with profiles GN011 and GN031, developed from the Genesis 75 platform. The glazing assembly has four glass layers, with the additional outer pane specified as tempered glass in 6 mm or 8 mm thickness. Because the shading element sits within the multi-layer glass build, it is integrated into the window’s glazed area instead of being a separate surface-mounted blind. The manufacturer also describes concealed cable routing through the frame and sash and the possibility of adding control automation. This arrangement can keep the window’s shading hardware within the glazing composition while preserving a framed aluminum exterior. Listed constructions include a single-sash window or a two-sash window with a fixed mullion, giving the designer two documented ways to divide the glazed opening. The system’s profile and glazing assembly can therefore shape both the appearance of the opening and the way its internal shading is incorporated.

Integrated Blind Within a Multi-Layer Glazing Unit

The manufacturer’s technical table lists an 82 mm frame depth, a 124 mm mullion width, and an 87 mm sash depth for this integrated-blind Genesis 75 construction. These dimensions define the frame perimeter, central division and sash section around the glazed area. Aliplast publishes a Uw value of 0.79 W/(m²·K) for a reference window measuring 2100 × 1800 mm, using glass with Ug = 0.5 W/(m²·K) and a Swisspacer Ultimate spacer. The published acoustic range is 46–50 dB for a two-sash window with a fixed mullion measuring 2100 × 1900 mm, depending on the glass used. These figures retain their stated sample conditions and are not interchangeable with a different finished size or glazing build. RAL, Wood Colour, bi-color, and anodized finishes are shown for the system, giving options for aligning the frame with an exterior palette or interior scheme. With the blind inside the glazing assembly, the glass unit and shading treatment are designed as a coordinated window feature. Concealed cable routing is part of the profile provision for control, and Aliplast identifies automation as a possible addition without naming a specific control package. The two documented sash layouts also allow the fixed-mullion option to divide a broad opening into separate glazed leaves. Manufacturer system data and reference performance depend on the selected profiles, infill, and configuration.
