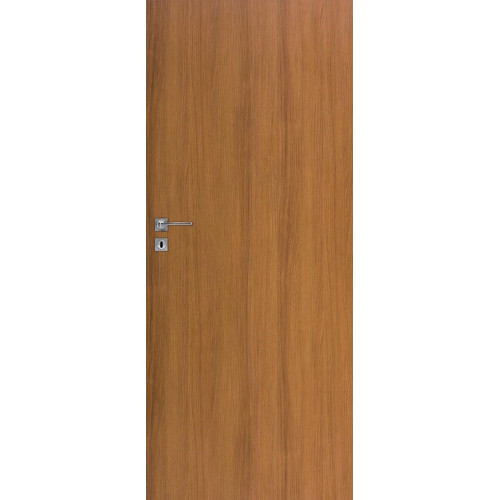

DRE Athos 10 EI30 is an interior entrance door for the manufacturer’s specified fire-rated assemblies. The leaf uses a glued softwood frame and solid chipboard filling, with a straight edge, cylinder-prepared mortise lock, three three-part hinges, and anti-pry bolts. It is listed for residential, public, shared residential, utility, and technical interior locations. Athos should be specified as a complete door set, because the frame and required closing components are part of the assembly associated with its published classifications. The selected frame also determines which fire-resistance designation applies. This makes the order more than a choice of leaf finish: the opening, frame, hardware, and closing arrangement need to follow the same system specification.
DRE publishes EI2 30 for the Athos assembly with a steel frame and EI1 30 with the dedicated wooden frame. The catalogue also lists Sa and S200 smoke classifications and Rw 32 dB acoustic performance for the specified configurations. These are manufacturer classifications of the corresponding assembly rather than a promise for any installation of the leaf. A door closer is required to meet the manufacturer’s national technical assessment conditions for the EI30 door. The listed steel-frame options include fixed, adjustable, and hybrid versions, while the dedicated OD Athos wooden frame uses its specified threshold or drop-seal arrangement. Choose the exact frame and closing components before completing the set order.
The Athos 10 leaf is offered in CPL laminate groups, with size and finish combinations following the catalogue. Nominal width codes are listed from 80 to 110, and the available width depends on the laminate selection. The 110 code in the 0.7 mm laminate group requires an individual quotation through the manufacturer’s contracts department. Optional additions include listed closers, a viewer, and threshold components. The wooden frame has a fixed 100 mm member width, CPL covering, and an intumescent seal in its reveal. These details should be coordinated with the opening and finished floor. Include the frame amount and required closer when reviewing the complete set, since the published leaf amount covers a smaller component scope.
Specifications: Manufacturer: DRE, Poland; model: Athos 10 EI30; application: interior technical/entrance door; leaf construction: glued softwood frame with solid chipboard. Standard leaf hardware: cylinder-prepared mortise lock, three three-part hinges, and anti-pry bolts. Published assembly fire classes: EI2 30 with steel frame or EI1 30 with the dedicated wooden frame; smoke classes: Sa and S200; listed acoustic performance: Rw 32 dB in the specified configuration. Door closer required for the EI30 assessment conditions. Nominal codes: 80–110, subject to the listed finish/size availability. Frame, handle, required closer, and selected threshold or seal components are separate from the starting leaf amount and must follow the chosen complete assembly.
