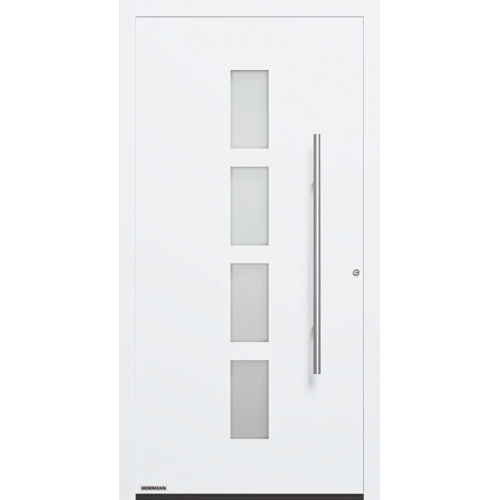

Hörmann ThermoSafe Style 501 Exterior Entrance Door

Hörmann ThermoSafe Style 501 Exterior Entrance Door

The Hörmann ThermoSafe Style 501 Exterior Entrance Door uses catalog motif 501 as its design reference within the ThermoSafe aluminum entrance-door range. The motif number is a useful way to identify the appearance in a project schedule, while ThermoSafe names the construction family behind the door. Hörmann describes a leaf with aluminum sheets on the inside and outside and a rigid polyurethane-foam core between them. The leaf is 73 mm deep, and its frame is 82 mm deep. Thermally separated aluminum profiles provide the structural connection between the leaf and frame, with a polyamide profile containing 25% glass fiber in the separation. This layered construction gives the 501 door a defined material palette: aluminum surfaces, an insulated central core, and a separated profile system. The family also lists three EPDM seals, useful to note when comparing a door schedule with the technical description. These details explain the system without turning the motif into a complete order specification. Glass, finish, frame appearance, size, and any adjoining fixed sections are choices to resolve against the elevation and opening. The 501 motif keeps the intended design recognizable while those functional decisions are coordinated separately. The aluminum faces and foam-filled leaf give the motif a consistent panel context across those choices, while the profile and seals describe the surrounding frame interface. When matching several exterior openings, repeat the RAL designation and frame-view basis on each line of the schedule; similar-looking elevations can otherwise conceal different frame dimensions or surface selections.

501 design with a coordinated frame and finish

ThermoSafe is listed with powder-coated surfaces, standard RAL 9016 and additional colors by order. Naming the intended color on the schedule helps relate the entrance to nearby facade finishes and metal accents; it also separates a finish selection from the motif number. Frame view affects the published maximum outside dimensions. With a 70 mm frame view, Hörmann gives a standard maximum of 1250 × 2250 mm, an Übergröße format of 1250 × 2350 mm, and an XXL format of 1250 × 2500 mm. For the 110 mm frame view, the technical sheet allows an additional 80 mm of width and 40 mm of height. These are system-family limits, not a size assigned to the Europrestige listing; use the outside-frame basis when comparing a planned opening or elevation. The H5 five-point lock is the family’s standard fitting reference. A project description can therefore connect the 501 motif with a selected powder-coat color, actual frame view, outside dimensions, glazing choice if any, and the lock on the order drawing. That keeps appearance and construction decisions legible across drawings and quotations. Family construction and size references depend on the selected configuration; confirm the ordered 501 build and its applicable performance.
