DRE Nefryt RC3 EI30
- Free consultation
- Delivery and certified installation in CT & NY
- European quality

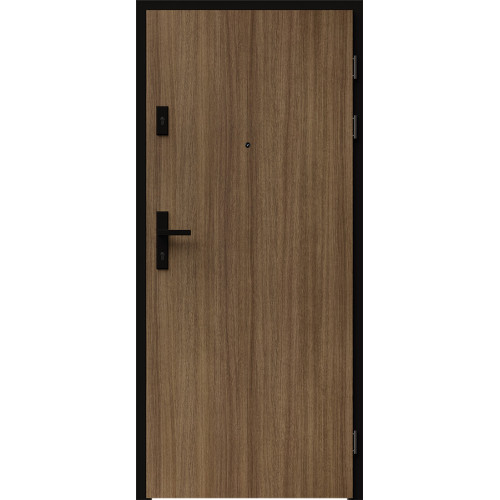

DRE Nefryt RC3 EI30 Interior Entrance Door
Nefryt RC3 EI30 combines several classifications in one interior entrance-door specification, so it should be considered as a complete documented assembly. The leaf uses a glued softwood frame and special multilayer filling, with a three-point hook strip lock, three three-part hinges, and anti-pry pins. The EI30 version also includes intumescent seals. DRE lists CPL laminate groups for the surface and width codes from 80E through 100E. Those visible selections do not replace the frame, threshold, and closing hardware needed for the rated configuration. Keep the EI30 version distinct from the separate Nefryt RC3 model when comparing a quotation or recording the intended components.
Keep Each Result with Its Named Frame
DRE publishes RC3, EI2 30, and Sa4/S200 for the documented complete assembly. Acoustic results vary by frame and threshold: Rw 42 dB is listed with an OSH2 or OSH LUX hybrid steel frame plus a metal threshold; Rw 41 dB is listed with an OSS2 fixed steel frame plus a metal threshold. The difference belongs to those named combinations, not to every Nefryt leaf or frame choice. A closer is required for the EI30 door. When requesting the set, identify the exact Nefryt RC3 EI30 version, steel-frame variant, metal threshold, and closer so the security, fire, smoke, and acoustic statements remain tied to the same assembly.
The ordering decision includes more than a surface and nominal opening code. The frame and threshold define which published acoustic configuration is being used, while the closer and fire-related components preserve the intended EI30 arrangement. Door direction, finished-floor level, and the compatible fittings should be coordinated before the set is finalized. The leaf alone does not include the frame, metal threshold, handle and cylinder set, escutcheon, or closer required for this assembly; list those components explicitly. A replacement component should not be treated as equivalent unless it matches the documented arrangement. Keep the exact EI30 version in the schedule: DRE’s separate Nefryt RC3 model is a different configuration and does not replace the RC3 EI30 leaf, fire components, and closer specified here.
DRE Nefryt RC3 EI30 Interior Entrance Door Specifications
| Specification | Published detail |
|---|---|
| Product | Nefryt RC3 EI30 interior entrance door |
| Leaf construction | Glued softwood frame with special multilayer filling |
| Leaf hardware | Three-point hook strip lock, three three-part hinges, anti-pry pins |
| EI30 detail | Intumescent seals; closer required |
| Published assembly classifications | RC3, EI2 30, Sa4/S200 |
| Acoustic configuration 1 | Rw 42 dB with OSH2 or OSH LUX hybrid steel frame and metal threshold |
| Acoustic configuration 2 | Rw 41 dB with OSS2 fixed steel frame and metal threshold |
| Nominal width codes | 80E–100E |
| Surface | Listed CPL laminate groups |
| Required set details | Specified frame, metal threshold, closer, handle, escutcheon, and cylinders |
