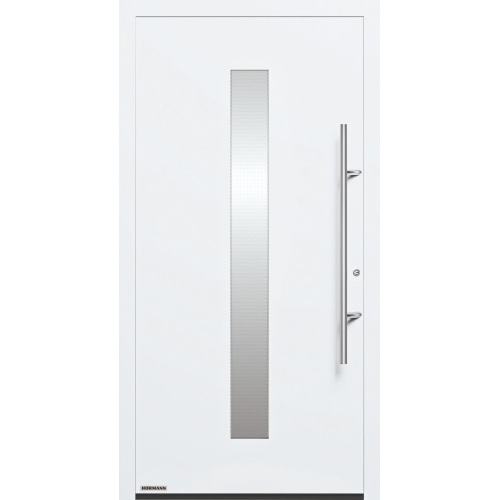

Hörmann ThermoSafe Style 185 Exterior Entrance Door

Hörmann ThermoSafe Style 185 Exterior Entrance Door

The Hörmann ThermoSafe Style 185 Exterior Entrance Door is an aluminum front-door design identified by motif 185. The number is useful when comparing catalog motifs, but does not describe the exact color or glazing arrangement chosen for a project. ThermoSafe’s published construction uses aluminum face sheets on both sides of the leaf and rigid polyurethane foam as its core. The leaf and frame are separate parts of the system: the leaf contains the foam between its faces, while thermally separated aluminum profiles shape the surrounding frame. A glass-fiber-reinforced polyamide section is included in the profile, and three EPDM seals are part of the family description. These materials describe the construction behind the Style 185 design, from the outer face to the insulated core and surrounding frame. When considering motif 185 for an existing home, compare the intended visual treatment with the facade, then handle fit as its own decision: opening measurement, frame outside dimensions, frame view and swing all need a common specification.

Choosing the ThermoSafe 185 entrance configuration

The useful dimension to compare with a measured opening is the proposed frame outside size, using the frame view stated for that size. Hörmann lists family maxima for a 70 mm frame view of 1250 × 2250 mm standard, 1250 × 2350 mm oversized and 1250 × 2500 mm XXL. With a 110 mm frame view, the family sheet allows an additional 80 mm of width and 40 mm of height. They are reference limits for the ThermoSafe system, not a selected size for motif 185. For the visible finish, the family reference describes powder coating, RAL 9016 as standard and other ordered colors as available. Choose the color and any glazing or fittings from the actual order details so the motif reference and the delivered option set remain aligned. Hörmann also lists its H5 five-point lock as standard for this family. A useful specification therefore connects motif 185 with frame view, exterior dimensions, handing, finish, glazing and lock in one place. These are family construction and selection references; the table does not imply that a particular combination has already been selected for this listing. A simple project schedule can keep those decisions distinct: note motif 185 for design, frame view and outside size for fit, then record swing, finish, glazing and lock as separate selections. Comparing the opening with frame dimensions on the same basis is more useful than relying on a broad product size range alone. This is especially helpful when the existing frame or wall finish affects how the new casing meets the surrounding facade. The H5 five-point lock and three EPDM seals sit within the broader construction of the entrance element. Alongside the chosen color, the aluminum inner face also matters for the view from the hallway: consider both sides when coordinating the door with adjoining finishes.

Manufacturer System Reference
