WIKĘD KÖMMERLING 76 MD PVC Window System

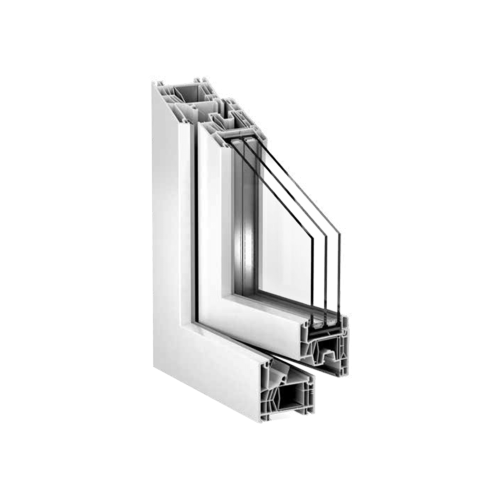

The KÖMMERLING 76 MD is a WIKĘD uPVC window system with a 76 mm profile depth, six chambers, and three seals including a central seal. The system is specified for two- or three-pane glazing units 24–50 mm thick. Its depth matches the 76 AD profile, but the internal chamber count and sealing arrangement are different. That makes the MD suffix essential when a buyer compares profiles or checks a quotation: a shared depth does not identify the same system construction. These are published profile details, not a guarantee of how a complete window will perform once dimensions, glass, reinforcement, fittings, and installation are selected.
Distinguishing the 76 MD Configuration
The central seal is the defining feature to keep visible in the specification. It belongs to the system’s three-seal layout; it should not be presented as a standalone rating for the finished unit. Confirm the selected glass thickness against the 24–50 mm range and record the actual glass package, opening type, and dimensions in the window schedule. For projects mixing fixed and operable sections, identify each section separately so the supplier can prepare the right assembly rather than applying a general profile description to every opening. The glazing range gives a boundary for system compatibility, while the glass choice still depends on the requirements of the project. If a quote includes a performance value, have it tied to the specified glass and dimensions and retain that same basis if the proposal changes. This makes it easier to recognize a substitution between 76 MD and the similarly deep 76 AD before the order is finalized.
Keeping the Central Seal in the Specification
The MD version’s central seal separates its documented construction from the AD version at the same profile depth. Preserve the full 76 MD name when the design schedule is prepared and when the proposal is checked, then confirm the three-seal arrangement on the system being quoted. This identifies the profile detail without suggesting that the seal alone guarantees a performance class. For multiple openings, note which ones use 76 MD and attach the selected glazing thickness and sash layout to each entry. If an alternative is proposed, review whether it keeps the central-seal configuration and the intended 24–50 mm glazing range. That comparison is more specific than relying on the shared depth, and it allows a buyer to spot a profile substitution while the order can still be corrected. Final window data should continue to refer to the glass and dimensions in the approved schedule.
KÖMMERLING 76 MD Specifications
| Specification | Published system detail |
|---|---|
| Manufacturer | WIKĘD |
| Profile system | KÖMMERLING 76 MD |
| Product | uPVC window system |
| Profile depth | 76 mm |
| Profile class | B |
| Chambers and sealing | 6 chambers; 3 seals including a central seal |
| Glazing range | 2- or 3-pane units, 24–50 mm thick |
| Finished-window performance | Confirm for the selected glass, dimensions, hardware, opening layout, and installation |
