Aliplast Genesis 75 i+ Aluminum Window System

Aliplast Genesis 75 i+ Aluminum Window System

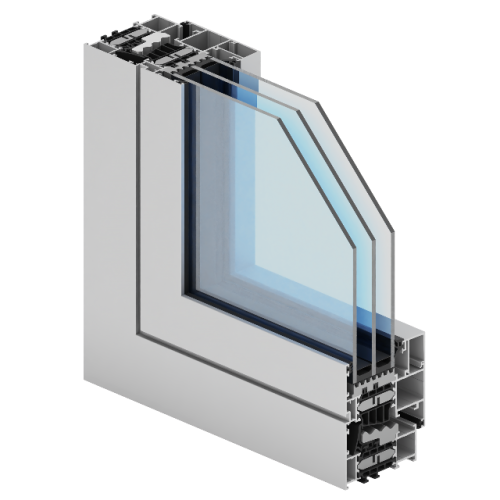

The Aliplast Genesis 75 i+ Aluminum Window System is a three-chamber window profile system for designs that need a defined aluminum frame and broad glazing choices. The frame profile is 75 mm deep and the sash is 84 mm deep; Aliplast lists infill capacity from 1–56 mm for fixed glazing and 9–65 mm for opening sections. These dimensions help organize the visible frame around the glass while allowing fixed areas and operable sashes to be composed within a window design. Aluminum profiles are combined with insulating materials, and the system includes a central window gasket plus an additional thermal gasket. The manufacturer publishes Uf from 0.76 W/(m²·K) for the i+ window profile system; this is a profile value, not the Uw of a complete window. The exact window arrangement, glass build, and finish remain part of the made-to-order design. Genesis 75 i+ supports fixed and tilt-and-turn window types, giving a project a route to combine clear fixed glazing with sections intended for ventilation while keeping a consistent profile language across the elevation. A selected finish can then carry that profile language across several openings, even where room use calls for different sash arrangements.

Genesis 75 i+ Thermal Profile Construction

Aliplast describes the added thermal gasket alongside the central seal as part of the Genesis 75 profile construction. In an opening window, the sash closes against this seal line; in a fixed panel, the chosen glazing is retained within the frame. These roles make it useful to distinguish a fixed glazed section from an operable sash when planning room use, facade rhythm, and the window schedule. The listed frame and sash depths and the different fixed-versus-opening infill ranges also help a designer reserve space for the intended glass assembly. Aliplast’s system data lists air permeability Class 4, wind resistance Class CE2400 (2400 Pa), and water tightness Class E2400 (2400 Pa) for the Genesis 75 i+ window profile system. Those are manufacturer system references. The family offers RAL and textured colors, wood-effect and stone-effect finishes, anodized finishes, and two-color treatments; the palette gives the frame a way to sit quietly with masonry or stand out against it. A consistent finish can link multiple windows, while a two-color choice can coordinate the outer frame and the interior view separately. The 75 mm and 84 mm profile dimensions distinguish the frame perimeter from the deeper sash section, while the separate infill ranges account for fixed and opening members. Manufacturer system data and reference performance depend on the selected profiles, infill, and configuration.

Aliplast Genesis 75 i+: System Specifications
