WIKĘD VEKA PERFECTLINE SWING PVC Window System

WIKĘD VEKA PERFECTLINE SWING offers a PVC profile system for a window order built around the room’s opening and glazing needs. The published construction uses Class A profiles with a 70 mm depth, five chambers in the frame, and five chambers in the sash. WIKĘD identifies SWING as a named system in its PVC window range. It can be specified with double-pane or triple-pane glazing, with complete glass units from 24 to 40 mm thick. Those dimensions give the project a defined profile and glazing envelope. The window layout can then be developed around the view, ventilation requirements, and wall detail instead of starting from a fixed package that may not suit the opening.

Consider the glass selection early when reviewing PERFECTLINE SWING. The number of panes and the thickness of the complete unit are different parts of the specification: a pane count alone does not describe all of the glass being ordered. The unit must also fall within the profile’s listed 24–40 mm range. Comparing two proposals is more useful when both state the actual glass build-up and the size of the window. This makes it easier to understand which assembly is being discussed and how it relates to the room. For a project with several openings, record the glazing and intended operation for each position so a fixed section and a moving sash receive the appropriate specification.

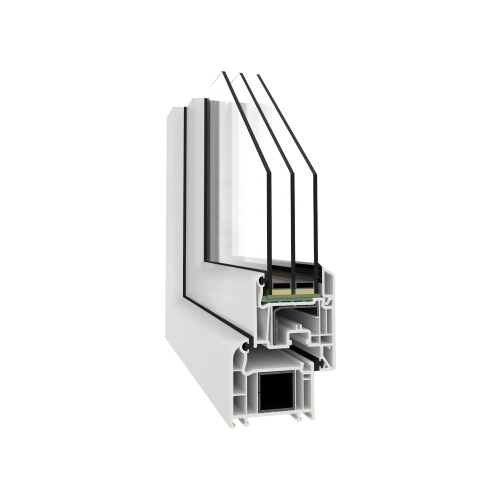

The frame and sash share a five-chamber profile construction, while the system includes two seals. The 70 mm depth is a useful coordination dimension for the opening and its finished reveal. On a renovation, review the available space around the existing window and how the new frame will meet the surrounding surfaces. On a new build, coordinate that frame position with the wall detail before the installation stage. The PVC profile system supplies the construction platform; the finished window still needs its own dimensions, glazing, hardware, and opening arrangement. Keeping those selections together supports a clear order and helps the installation detail follow the assembly that was actually chosen. Where several windows sit together, record their individual clear openings and overall frame dimensions separately. This allows the finished reveals to be coordinated without assuming that every unit uses an identical sash layout.

Specifications: Supplier: WIKĘD; system: VEKA PERFECTLINE SWING; product type: PVC window profile system; profile material: uPVC; profile depth: 70 mm; profile class: A. Published chamber counts: five in the frame and five in the sash; sealing arrangement: two seals. Glazing options: double-pane or triple-pane units, 24–40 mm overall thickness. Final size, pane build-up, hardware, and opening layout are project selections. The SWING system name identifies the profile option and should be included with the configuration-specific window schedule. Use the listed depth and glass range to coordinate the opening and selected unit, with final performance information obtained for that same completed window configuration.
