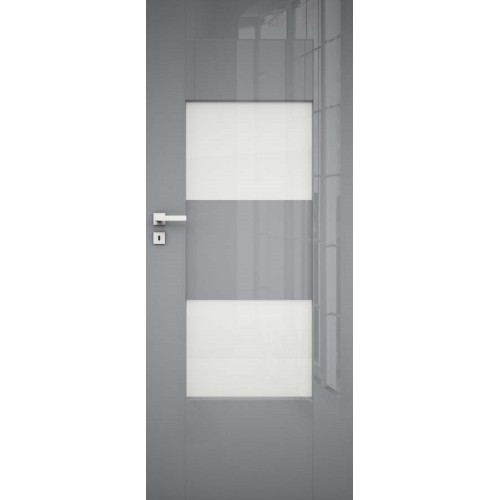

DRE Nella 5 Framed Interior Door
Nella 5 uses an MDF frame around a glass insert, with a non-rebated leaf edge. Its standard glazing is 4 mm MAT DRE glass. DRE also lists brown DECORMAT, graphite DECORMAT, and transparent pane choices, alongside high-gloss and standard matte laminate for the surrounding surface. The laminate is specified at 0.7–0.8 mm. This combination makes the frame and pane central to the door’s appearance: the leaf is not simply a solid slab with a small decorative mark, but a framed composition whose glass and finish are both selected. When planning a pair of neighboring doorways, compare the pane and laminate together so the openings relate to each other without assuming a single fixed finish for every Nella 5 order.
Finish and Fitting Details
The glossy laminate gives the leaf a more reflective face, while the standard matte option changes that surface character. The pane is a separate choice: MAT DRE is the documented standard, and the three named alternatives provide different appearances. Select from those listed choices when describing the configuration; the text does not imply any additional glazing type or rating. The hinged version is prepared for two recessed Estetic 80 hinges, with the hinges supplied in the selected frame. DRE lists magnetic and mechanical lock options with regular-key, bathroom, cylinder, or latch-only functions. Since the non-rebated edge belongs to this model construction, the frame and hinge preparation should match that choice. Specifying finish, pane, and lock together makes the selected leaf easier to compare against the complete opening assembly.
Sliding and Two-Leaf Planning
Nella 5 is also listed in sliding and paired arrangements. The catalog identifies a sliding leaf at 2,043 mm and lists SPAZIO CD for that height standard. Width codes for a single leaf run from 60 through 100, while paired configurations use 120–180 and require a second leaf plus the corresponding meeting detail. A pair changes the scope of the order: the second panel and its fittings must be selected as part of the assembly, as part of the two-leaf assembly rather than assuming the single-leaf order covers both. Confirm the opening type, height, width, glass, and locking function before selecting the frame. That sequence keeps a sliding preparation from being confused with the recessed-hinge arrangement intended for a hinged door. Frame and handle are separate from the catalog starting leaf. A single-leaf quote and a two-leaf quote describe different order scopes. The paired widths have their own codes, and the second panel with its meeting detail changes the assembly. Write down whether the opening is hinged or sliding alongside the pane and lock; otherwise, the recessed Estetic 80 preparation for a hinged leaf may be mistaken for part of the sliding version.
Nella 5 Specifications
| Specification | DRE Nella 5 detail |
|---|---|
| Construction | MDF-framed, non-rebated interior leaf |
| Glazing | 4 mm MAT DRE standard; brown or graphite DECORMAT, or transparent alternatives |
| Laminate | High-gloss or standard matte, 0.7–0.8 mm |
| Hinged preparation | Two recessed Estetic 80 hinges; supplied with frame |
| Sliding option | 2,043 mm; SPAZIO CD listed |
| Width codes | Single 60–100; paired 120–180 |
| Starting scope | One leaf; frame and handle separate |
