WIKĘD KÖMMERLING 76 AD PVC Window System

Orders starting from  $35,000
Price: $ 500

  • Free consultation
  • Delivery and certified installation in CT & NY
  • European quality

WIKĘD KÖMMERLING 76 AD PVC Window System

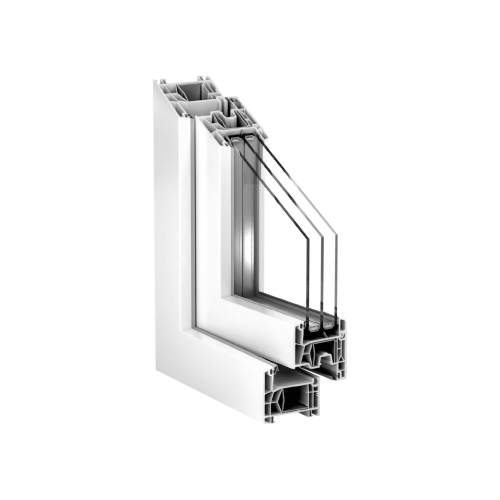

KÖMMERLING 76 AD is WIKĘD’s uPVC window profile system built around a 76 mm profile depth. Its documented construction has five chambers and two external seals, and the system accepts two- or three-pane glazing units from 24 to 50 mm thick. For a buyer, that combination defines the AD profile’s basic architecture and a useful boundary for selecting the glass package. It does not describe the finished window’s dimensions or establish an air, water, sound, or thermal rating. The glass, reinforcement, hardware, sash arrangement, and installation all belong to the specific unit and must be assessed as a whole.

What the 76 AD Profile Specifies

The AD suffix is the important identifier in a comparison with another 76 mm system: this version uses two external seals. Keep the model suffix on drawings, quotations, and repeat orders, and make sure the glass thickness quoted for the window stays within the published 24–50 mm range. A two-pane or three-pane option can be considered within that range, but the pane count alone does not say which glass make-up is suitable for a particular room. The selected configuration should be written alongside the window size and opening form so a later change can be reviewed against the same basis. If the project calls for documented performance, ask for data for that complete assembly instead of reading a result into the profile depth or seal count. This keeps the system’s specifications precise while leaving configuration-dependent choices attached to the window being purchased.

Keeping the 76 AD Name with Its Seal Layout

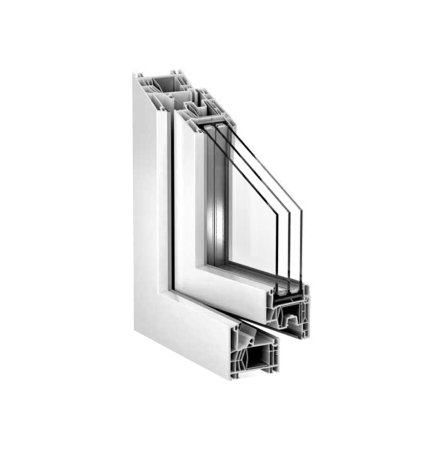

WIKĘD also offers a 76 mm MD system, so the shared depth is not enough to identify the chosen profile. For this AD version, retain the full suffix and its two external seals in the product schedule. That description keeps the construction clear without treating the seal count as proof of a particular finished-window rating. The buyer can then compare proposals for the same profile system while checking that each one names the glass thickness, sash arrangement, and hardware actually included. If a supplier substitutes another system of similar depth, the difference is visible before approval instead of being obscured by a short “76 mm” label. The profile specification is most useful when it travels with the configured window details; otherwise the published glazing interval and chamber arrangement can be confused with the properties of a different assembly. This makes the full model name a practical part of the order review. That specificity reduces the chance of an unnoticed profile change in the final quote.

KÖMMERLING 76 AD Specifications

SpecificationPublished system detail
ManufacturerWIKĘD
Profile systemKÖMMERLING 76 AD
ProductuPVC window system
Profile depth76 mm
Profile classB
Chambers and sealing5 chambers; 2 external seals
Glazing range2- or 3-pane units, 24–50 mm thick
Finished-window performanceConfirm for the selected glass, dimensions, hardware, opening layout, and installation
