Aliplast Superial OUT Aluminum Window System

Aliplast Superial OUT Aluminum Window System

The Aliplast Superial OUT Aluminum Window System is an aluminum profile system made for outward-opening window sashes. Because the sash moves toward the exterior, the opening action keeps its swing out of the room and can suit interiors where furniture, circulation, or a useful sill area influence the layout. Aliplast describes tilt-and-turn and turn-only arrangements, with pivot or scissor hinge solutions for the outward movement. In tilt operation, a sash can open at the top or bottom; a turn opening can use a limiter. These mechanisms allow the opening pattern to be planned around the window's position in the facade. The system has a flush inside face, giving the frame and sash a level interior profile line. Its reversing profile can connect an outward-opening window with storefront framing, while compatible Superial connectors, gaskets, and glazing beads help coordinate the assembly with related system components. Profile bending is also listed as a system capability. The hinge arrangement, reversing detail, and direction of movement shape how the window meets adjacent glazing and the surrounding wall, so Superial OUT has a distinctive role in aluminum elevations where an exterior-opening sash is desired.

Outward Opening and Aluminum Profile Design

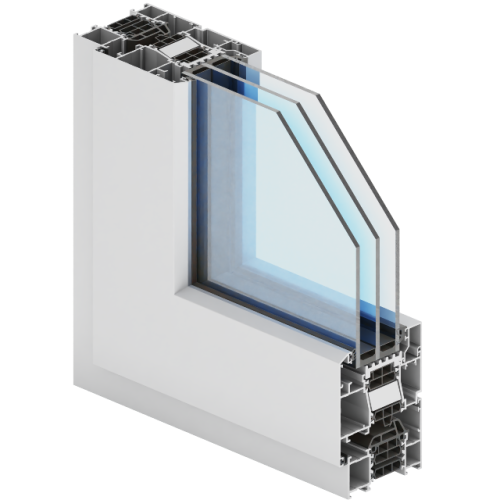

Aliplast lists a broad finish family for Superial OUT, including RAL colors, textured surfaces, wood-effect and stone-effect finishes, anodized surfaces, and bicolor treatments. Bicolor finishing allows the interior and exterior faces to use different colors, while textured or anodized options give the aluminum profile a different surface character from a standard color finish. These choices support coordination with facade materials, storefront framing, and interior trim. The visible result also depends on how the sash line sits within the opening: the flush inside face keeps the room-side profile visually aligned, while the reversing profile is intended for a storefront connection. For the base SP OUT reference, Aliplast specifies an aluminum profile with a polyamide thermal break, a 75 mm frame, an 84 mm sash, and glazing up to 61 mm. The manufacturer reports Uf from 1.65 W/(m²·K), air Class 4, wind C5/B5, and water E900 for this profile reference; Uf varies with profile combinations and infill thickness. Manufacturer system figures and opening limits are reference data; a finished window depends on its exact SP OUT version, opening mode, dimensions, infill, and assembly. The opening mode also changes the allowable sash format: outward tilt-and-turn and turn-only arrangements have separate dimensional and mass limits. Keeping those operating formats distinct makes it easier to relate the profile, hinge approach, and available clearance to the facade design.

Aliplast Superial OUT Aluminum Window System Specifications
