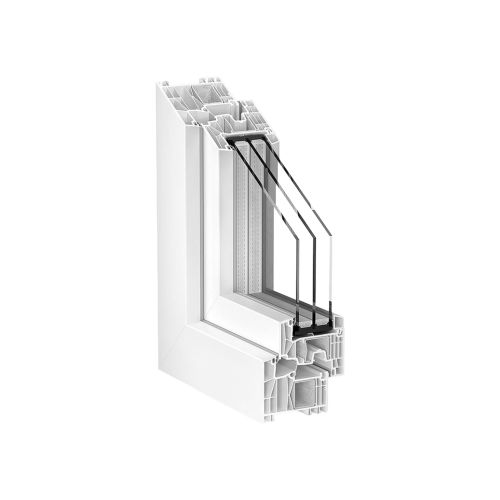

WIKĘD KÖMMERLING 88 MD PVC Window System

WIKĘD KÖMMERLING 88 MD is a uPVC window system with an 88 mm profile depth. It has seven chambers, a three-seal arrangement with a central seal, and accepts two- or three-pane glazing units from 24 to 54 mm thick. The larger depth and glazing range make it a distinct profile specification to review when the design calls for the documented system dimensions. They do not, by themselves, establish a thermal value for a custom unit, so request the value for the exact window if the project requires a defined target.

The three seals and seven-chamber construction are published details of the system. They can guide a comparison of profile architecture, but the complete window still depends on its glass, dimensions, reinforcement, fittings, and installation. Confirm that the intended glazing package fits within the 24–54 mm range, then make sure the same glass build-up appears on the final order and any performance calculation. If two- and three-pane options are both under consideration, compare them as complete assemblies for the project instead of assuming that the maximum thickness automatically identifies the right selection.

An 88 mm profile should be coordinated with the wall opening and adjacent construction before fabrication. Review how the frame depth meets the interior finish and exterior details, and decide whether each section needs to open or remain fixed. Where the design uses several windows together, plan divisions and sightlines across the elevation so frame proportions remain consistent. The 88 MD profile is therefore a useful part of the specification, but dimensions, glass, and operation must be settled for every opening. A clear window schedule reduces confusion between a system’s published range and the delivered configuration. The 24–54 mm range should be treated as the permitted glazing thickness range stated for the system, not as a recommendation to use the thickest available package. Select the glass for the job and confirm its weight and make-up with the supplier alongside sash dimensions and hardware. For several openings, create a schedule that identifies which panes are fixed and which open, then ensure the order preserves those divisions. This gives the fabricator a consistent reference for the profile and helps the installer identify each unit without confusing the larger 88 MD section with the 76 mm systems. Ask the fabricator to show the selected glass and opening layout on the final schedule. This keeps the larger profile’s published range connected to the actual design, and makes it easier to review any later change to pane thickness, sash dimensions, or hardware.

Specifications: Manufacturer: WIKĘD; profile system: KÖMMERLING 88 MD; product: uPVC window system; profile depth: 88 mm; profile class: B; chamber count: 7; sealing: 3 seals including a central seal; glazing: 2- or 3-pane units, 24–54 mm thick. Verify the complete window dimensions, glass specification, operating form, hardware, finish, and configured-unit data with the supplier.
