Aliplast Slide Glass Sliding Glass Door System

Aliplast Slide Glass Sliding Glass Door System

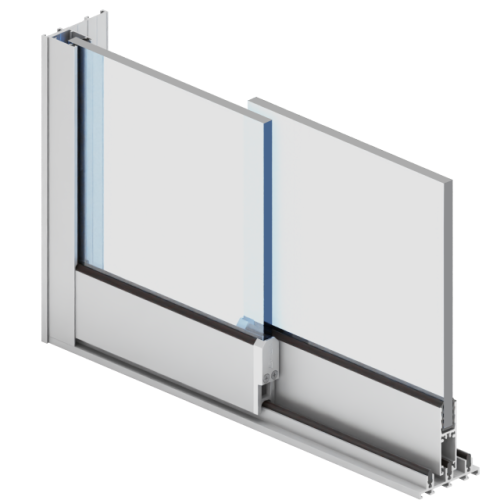

Aliplast Slide Glass is an aluminum-and-glass sliding door system for glazed openings and vertical glazing on pergolas and terraces. Its minimal visible aluminum profile edges keep attention on the glass, while each panel travels along a multi-track guide. This system has no thermal insulation, a key distinction when comparing it with an insulated patio door. Aliplast specifies 10 mm tempered glass and publishes a leaf width range of 690–1130 mm, a maximum leaf height of 2600 mm and maximum leaf weight of 80 kg. Those are system-range limits rather than the size of a particular assembly. Track count affects how panels pass one another and where they sit when the opening is partly or fully open; three, four and five-track layouts are listed. To compare a proposed arrangement, consider the clear opening you want, the number of glass leaves, the overlap between them and the width available for the tracks. The system’s dimensions can help narrow a layout before the finished opening is specified: panel width is listed from 690 to 1130 mm, and the leaf height limit is 2600 mm. These limits should be considered with the chosen number of tracks, because more paths change where the panels travel and gather.

Plan the glass panels and track layout

The Slide Glass system lists adjustable and non-adjustable trolleys. Trolley choice is part of the panel movement setup, while the track count determines the paths available to the leaves. Aliplast also shows a handle profile attached to the glass, hook locks, a built-in catch and side-lock options. These provide different ways to grip or secure the panels at the meeting point or edge, and the choice should follow the opening pattern and the manner in which the panels are expected to close. Rail material is available in aluminum or stainless steel. When reviewing a layout, compare the rail finish with adjacent metalwork and make sure the selected closing components work with the chosen panel arrangement. Because Slide Glass has no thermal insulation, it belongs in applications where that characteristic fits the design intent; the manufacturer describes glass-door and pergola or terrace glazing uses. The dimensions and hardware choices below describe the Aliplast system range. The exact panel count, rail and operating parts should be read as configuration selections, not as a list of components guaranteed for every finished installation. A glass-mounted handle profile offers a grip directly at the panel, while a hook lock, built-in catch or side lock addresses the closing arrangement in a different way. The options are useful to review against the panel meeting point and the preferred access side. Rail material is another visible decision: aluminum and stainless steel are both listed, allowing the guide to be considered with other metal details in the space.

Specifications
