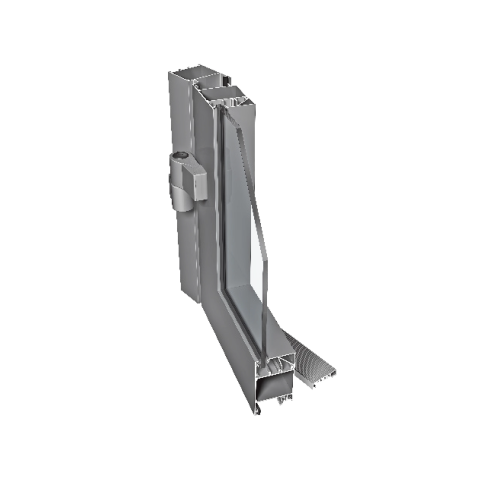

WIKĘD Procural PE50 Aluminum Interior Door System
- Free consultation
- Delivery and certified installation in CT & NY
- European quality
WIKĘD Procural Aluline PE50 Interior Door System
Procural Aluline PE50 is an aluminum profile system for interior doors and interior built-ins. WIKĘD’s declaration identifies both single-leaf and double-leaf interior door arrangements for residential and commercial locations, while its model page also associates PE50 with built-in applications. That makes the profile platform relevant to projects where a doorway is planned alongside other interior elements, but it does not define a single finished leaf, infill, or hardware package. A one-leaf opening and a paired opening create different passage layouts; the chosen arrangement should be recorded with its actual fabrication dimensions and intended use. The aluminum designation describes the profile system, not the material of every component in the finished door. In particular, the cited door declaration does not establish an all-glass leaf or tempered glass. Do not select a glazing type from the system name or a category label. If a design includes a transparent or opaque infill, identify that material and its suitability with the WIKĘD supplier as part of the proposed PE50 assembly. For interior built-ins, show how the door relates to the surrounding construction so the profile, edges, and adjacent finishes can be evaluated together.
Planning a PE50 Opening
The published PE50 model page gives maximum dimensions of 1,500 × 4,000 mm. This is a listed system limit; the supplier still needs to confirm the proposed dimensions and configuration for the specific order. When reviewing the opening, distinguish the overall frame size from the clear passage and decide whether a single leaf or paired leaves match the circulation pattern. For a double-leaf proposal, the meeting detail and the way the leaves are used should be shown rather than assumed from a product name. A built-in application should be drawn with the adjoining interior assembly, so the door’s boundaries are clear in the same design set. Specify the infill, visible finish, opening direction, hardware, and frame detail only after the project has identified what the system is being asked to form. These are assembly decisions, not properties guaranteed by the PE50 label. A useful comparison between suppliers therefore names the same leaf count and dimensions and describes the same infill and hardware. This keeps the aluminum profile system as the starting point for a defined interior door rather than allowing different proposed assemblies to appear equivalent simply because both use the PE50 name.
PE50 Specifications
| Specification | Published detail |
|---|---|
| Manufacturer and system | WIKĘD, Procural Aluline PE50 / PE50/WEW |
| Profile material | Aluminum |
| Application | Interior doors and interior built-ins |
| Leaf arrangements | Single-leaf or double-leaf |
| Listed locations | Residential and commercial interiors |
| Published maximum dimensions | 1,500 × 4,000 mm; confirm the selected assembly |
| Infill material | Not established by the cited door declaration; specify for the selected configuration |
