Aliplast Econoline Interior Panel Door System

Aliplast Econoline Interior Panel Door System

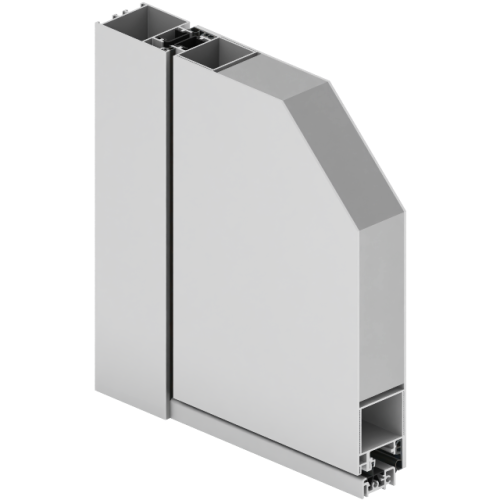

The Aliplast Econoline Interior Panel Door System, also called Econoline Panel Door or EL PD, is an aluminum door system for interior openings in residential and public buildings. Its turn-only operation is a conventional hinged movement: the leaf pivots across the opening, so the available swing space and the relationship to the adjoining room should guide the handing and handle position. This makes EL PD a straightforward choice to consider for an interior passage where a solid panel face is preferred over a glazed leaf. The frame and leaf sections are each 51 mm deep, with a 51 mm infill. Aliplast specifies the system without thermal insulation, so its role is an interior partition door rather than an insulated exterior entrance. These section figures describe the system, not the finished door size; the opening dimensions and the way the leaf is configured still need to be matched to the project. Before selecting a hinged interior door, consider where the leaf will swing, which side will be seen from each room, and how the panel plane will meet nearby wall finishes.

Panel Faces and Interior Design Choices

The EL PD design is built around an overlay panel bonded to the aluminum leaf. Aliplast describes the panel as attachable to the exterior face or to both faces, with a flush relationship to one plane of the frame. A one-sided arrangement gives the two sides of the doorway different treatments, while a two-sided arrangement presents a panel face to both adjoining spaces. This distinction is useful when the rooms have different interior finishes or when the door should read consistently from either side. The system accommodates panels in different patterns and colors, so the visual selection can be coordinated with the room rather than treated as a fixed appearance. Panel choice, its finish, and the completed hardware arrangement are project decisions; the order should identify the intended face treatment and opening direction. Aliplast’s published acoustic figure is 32 (0, −2) dB as a system specification, not a guaranteed result for every completed assembly. Likewise, system section dimensions should not be mistaken for the dimensions of an ordered door. Confirm the chosen panel arrangement, finish, handing, and hardware as part of the final door specification. When the two rooms meet the doorway with different colors or materials, a two-sided panel can relate to both palettes, while a single-sided panel lets the visible face be chosen for one room. Pattern scale and color should be considered from the normal approach to the door, since those choices shape how the panel reads beside the frame and surrounding trim. This gives the panel treatment a clear role in the interior scheme rather than leaving it as a detail selected after the opening has been planned.

Aliplast EL PD System Specifications
