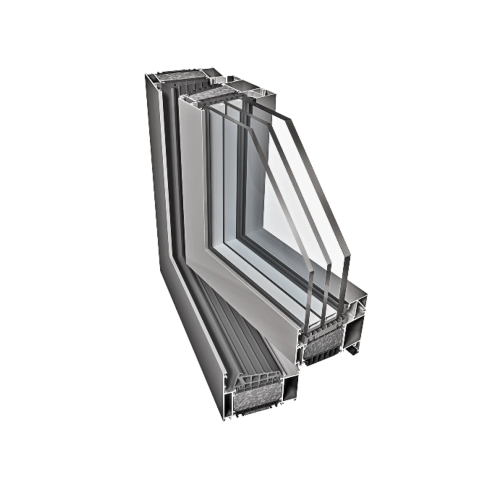

WIKĘD Procural Aluline PE96 Passive Aluminum Window System
PE96 Passive is an aluminum window system with a 96 mm profile depth, a useful dimension to establish early when the wall section, frame position, and interior finish are still being coordinated. The profile identifies the construction platform; the completed window is then defined by the selected glass, fixed and opening sections, overall size, and hardware. That distinction matters when comparing proposals: two windows named for the same system can have different assembled dimensions and glass specifications. WIKĘD publishes a reference Uw value of 0.66 W/(m²K) for a reference window. Read it as a manufacturer reference for that window arrangement, not as a guaranteed result for every opening or a claim that the finished product meets a particular building target. Ask that the proposed configuration be described alongside any performance figure used for comparison.
Coordinate Profile Depth and Glazing
The 96 mm system depth affects how the frame meets the surrounding construction, while the glass and layout determine what is ordered inside that profile. On a renovation, measure the existing opening and note the depth available for the new frame, trim, and finished reveal. On a new build, align the frame position with the wall detail before the opening is closed in. Decide which rooms need a view, daylight, or an operable section, then specify each opening rather than assuming that one layout suits an entire project. For energy comparisons, use the same basis for each window: overall size, glazing build-up, and arrangement of fixed and moving parts. The manufacturer’s reference Uw can help orient that discussion, but the order should be supported by information for the actual window. Confirm dimensions and engineering for the selected configuration with WIKĘD before fabrication, including the current sash-size and weight limits for the proposed layout.
Keep Reference Data With the Window Schedule
A useful PE96 Passive schedule names the profile system and then describes each proposed unit: its finished dimensions, glass build-up, fixed or operable sections, and hardware. This gives a reviewer enough context to identify whether a comparison uses like-for-like assemblies. The reference Uw should travel with its reference-window context rather than being copied into a general promise for every opening. If the project has a target, request the applicable value for the selected configuration and keep that documentation with the quote. The 96 mm profile depth is a separate coordination item: use it to discuss the wall interface, trim, and reveal, not as a substitute for the size or performance of the completed window. Settling those details before fabrication reduces ambiguity between the drawing and the ordered unit.
PE96 Passive Specifications
| Specification | Published detail |
|---|---|
| System | Procural Aluline PE96 Passive |
| Product | Aluminum window profile system |
| Profile depth | 96 mm |
| Reference window Uw | 0.66 W/(m²K), reference configuration |
| Project selections | Final dimensions, glazing, opening layout, hardware, and installation detail |
