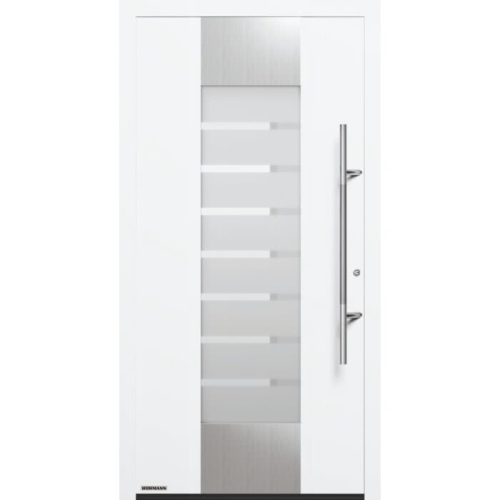

Hörmann ThermoSafe Style 166 Exterior Entrance Door

Hörmann ThermoSafe Style 166 Exterior Entrance Door

The Hörmann ThermoSafe Style 166 Exterior Entrance Door is an aluminum front-door design identified by motif 166. It gives a precise starting point for a discussion about the facade, while the selected color, glazing, handle and frame view are separate choices to record for the finished assembly. The ThermoSafe construction reference describes aluminum sheets on the inside and outside of the leaf with a rigid polyurethane foam core between them. The core is the leaf filling; the aluminum forms its faces. Around the leaf, thermally separated aluminum profiles make up the frame system, and three EPDM seals are part of the family construction. The profile incorporates a glass-fiber-reinforced polyamide section. Together, these layers define the insulated leaf and its surrounding frame as distinct parts of the ThermoSafe construction.

ThermoSafe 166: materials, size and finish choices

For sizing, request the frame outside dimensions and identify the frame view used to calculate them; neither should be substituted for the rough wall opening. Hörmann’s family sheet gives reference maximum outside dimensions for the 70 mm frame view: 1250 × 2250 mm in the standard format, 1250 × 2350 mm in the oversized format and 1250 × 2500 mm in XXL. A 110 mm frame view allows a stated increase of 80 mm in width and 40 mm in height. These are system format limits, not a declaration of the size selected for Style 166. On the appearance side, the ThermoSafe family uses powder coating, with RAL 9016 as its standard color reference and ordered colors also available. Select the finish and any glazing or fittings alongside the motif, then check that the order drawing brings those visual choices together with the measured opening, frame view, handing and swing. The family reference also lists an H5 five-point lock as standard; the order information should identify the lock supplied on the specific door. The figures and options in the table describe the ThermoSafe family rather than an individually documented Style 166 build. A side-by-side review is clearest when each option is named rather than inferred: motif 166, frame view and outside size, swing and handing, powder-coat color, glazing, and selected fittings. That list separates the exterior appearance from the dimensions used to check fit. It also makes it easier to see whether a format limit is relevant to the intended frame view before a door is specified for the opening. The H5 locking reference brings five locking points into the door system. When choosing the visible fittings, consider how the handle sits alongside the chosen motif and frame; the lock specification and the handle appearance are separate parts of the entrance design.
