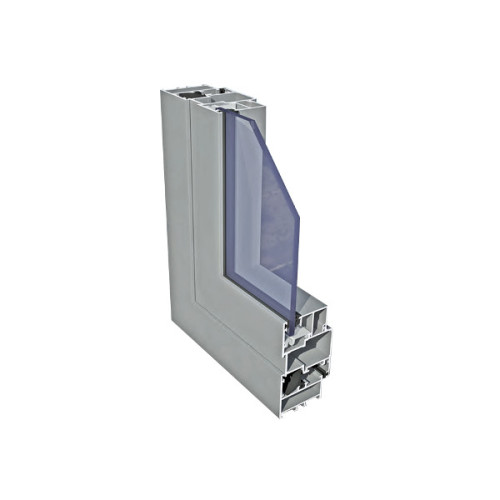

Rosinpol Aliplast Econoline Aluminum Window System

Rosinpol Aliplast Econoline is an aluminum system for windows, doors, and lightweight partitions where thermal insulation is not required. For a window project, that makes the intended setting central to the decision: it is a cold-system choice for interior or other unconditioned applications, not a substitute for an insulated exterior window. Rosinpol describes the platform as suitable for functional glazed divisions in offices, service spaces, industrial buildings, and public-use properties. Its aluminum construction gives the opening a defined profile frame while leaving the infill and final arrangement to the selected design.

The listed section dimensions help when checking how the frame will sit within a partition or opening. Econoline has a 51 mm frame depth and a 60 mm sash depth in the described basic variant. Rosinpol says the profiles can accept infill up to 37 mm and can be used for single or insulated glazing, so the selected panel needs to match the chosen section and application. Because the system is expressly without thermal insulation, consider the boundary between conditioned and unconditioned areas before using it. Confirm the complete assembly with the supplier when acoustic separation, exposure, or building use places additional demands on the opening.

Casement operation is the opening type identified for this window system. Plan the direction and clearance of each sash in relation to counters, equipment, corridors, and adjacent doors; this is especially useful in a room divider where circulation has to remain clear. The fixed portions and operable portions can be planned together so that the glazed partition provides the division the room needs without making every section movable. During specification, verify the rough opening, the selected infill thickness, and the connection to adjoining construction. This sequence helps keep a cold interior system in the role for which Rosinpol describes it. A partition may need a mix of clear infill, opaque panels, and operable leaves, but those are design decisions to confirm within the system’s infill limits. Sketch the direction of each casement sash before ordering, then review whether the open leaf would interrupt a work area or circulation route. For a glazed office division, also define which sections are meant to provide access and which are intended to remain closed. That layout review connects the product’s listed casement capability to the real room plan without treating every possible arrangement as part of a standard assembly.

Specifications: Manufacturer and fabricator: Rosinpol; aluminum system supplier: Aliplast; model: Econoline; product: aluminum window system; stated applications: windows, doors, and lightweight partitions without thermal insulation; basic frame depth: 51 mm; sash depth: 60 mm; infill thickness: up to 37 mm; listed window operation: casement; glazing options described by Rosinpol: single or insulated glazing. Confirm the project location and final infill with the supplier.
