Rosinpol Aliplast Genesis 90 Aluminum Window System

Orders starting from  $35,000
Price: $ 1,200

  • Free consultation
  • Delivery and certified installation in CT & NY
  • European quality

Rosinpol Aliplast Genesis 90 Aluminum Window System

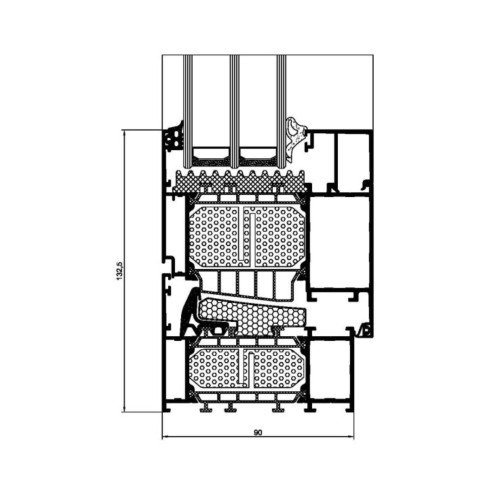

Genesis 90 is an Aliplast aluminum system used by Rosinpol for window construction. Its frame depth is 90 mm and sash depth is 99 mm, giving the product a defined section platform for designs that call for substantial glazing and a high thermal-performance target. These are profile-system dimensions, not the dimensions of a complete installed window. Rosinpol lists fixed (FIX), casement, tilt, and tilt-and-turn forms, so a project can specify different opening roles within the available system. The selected form, glass, and hardware must still be resolved for each unit before its performance or appearance can be assessed.

Genesis 90 Glazing and Window Forms

The published glazing ranges depend on construction type: 20–83 mm for windows and 16–74 mm for fixed constructions. Keep those ranges attached to their respective applications when reviewing drawings or a quote; the fixed-construction allowance should not be transferred to an operable window, or vice versa. Rosinpol says Uw below 0.8 W/m²K may be achieved in appropriate configurations. This is a system-level possibility rather than a guaranteed result for every Genesis 90 window. A configured unit’s outcome depends on its dimensions, glazing, and hardware, so ask for the calculation for the exact assembly if the project uses a numerical target. Decide which sections need to open and which can remain fixed, then confirm the chosen glass and fittings against each section’s construction. This lets the deeper profile and its documented ranges inform the design without confusing system limits with a result for a finished window.

Separating Fixed and Operable Genesis 90 Sections

A project that combines large fixed glazing with opening windows should identify those constructions separately. Rosinpol publishes one glazing interval for windows and another for fixed constructions, so the correct range depends on how each part is built. On the drawing and quote, label every section as FIX, casement, tilt, or tilt-and-turn and associate the proposed glass with that section. This is particularly useful when an elevation uses the same profile family throughout but not the same operating form everywhere. The possible Uw below 0.8 W/m²K should be discussed only with the configuration that supports the stated calculation; it does not transfer automatically from a fixed area to an operable sash or from one window size to another. Requesting the calculation against the actual section schedule keeps the system’s available forms and glazing limits connected to the unit being approved.

Genesis 90 Specifications

SpecificationPublished detail
System supplierAliplast
Window supplier and fabricatorRosinpol
Frame / sash depth90 mm / 99 mm
Glazing range for windows20–83 mm
Glazing range for fixed constructions16–74 mm
Listed formsFIX, casement, tilt, and tilt-and-turn
Configured system referenceUw below 0.8 W/m²K may be achieved in appropriate configurations; confirm the exact window
